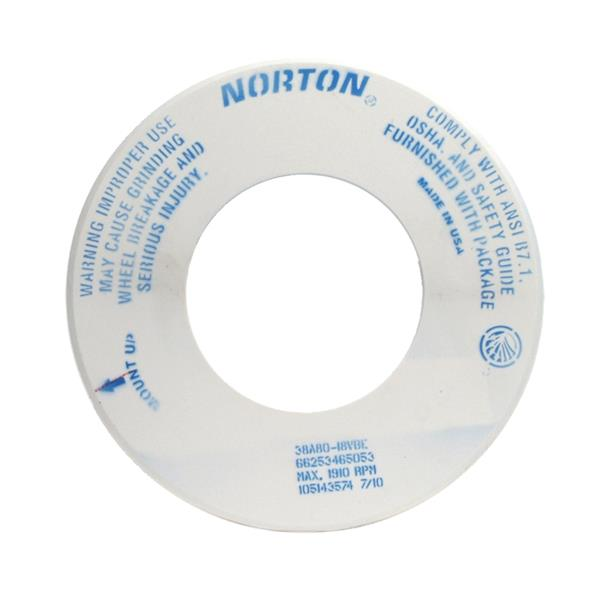

18 x .375 x 9 Inch 38A Toolroom Wheel Type 01 38A80-I8VBE
- Item Code: 66253465053
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- The most friable aluminum oxide abrasive for cool and burn-free grinding with light to moderate feed rates
- The most versatile vitrified bond, especially recommended for hard and heat sensitive high-speed tool steels
- Used on thread grinding machines to form the desired thread configurations
- Consistent quality for excellent balance and dimensional accuracy time after time
- Made in USA in ISO certified facility
Tech Specs
Back To Top| Arbor Hole Size(in) | 9 In. |
|---|---|
| Max Operating Speed | 1910 |
| Specification | 38A80-I8VBE |
| Thickness | .375 In. |
| Series | 38A |
| Wheel Type | Type 01 |
| Grade | Medium |
| Color | White |
| Material | Aluminum Oxide |
| Diameter(in) | 18 In. |
| Thickness(in) | 0.375000 |
| Brand | Norton |
| Grit | 80 |
