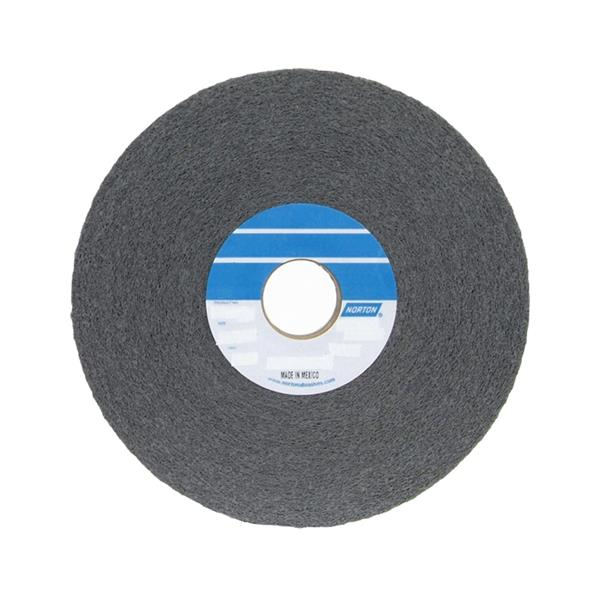

10 x 1 x 5 Inch Bear-Tex Series 1000 Non-Woven Convolute Wheel 9 Density Silicon Carbide Fine Grit

  • Item Code: 66261055277
  • Brand: Norton
  • Unit Size: 1

Description

Formed by wrapping and bonding web material impregnated with abrasive grain and resin around a center core. Convolute wheels offer a wide range of uses including burr removal, removing rust and oxides, and applying decorative surface finish where little or no stock removal is required.

Features Tech Specs

Features

Back To Top
    • Fine grit provides a reduced cut rate and is recommended for better finishes and form holding
    • Silicon carbide is a sharper more aggressive abrasive and leaves a fine/brighter scratch pattern
    • Best choice for general deburring, blending and finishing
    • Lubricants such as water-soluble oil and straight oil will decrease the heat and improve the surface finish and luster
    • Dense web construction (9 density) for starting point for deburring blending polishing and finishing applications
    • Convolute wheels are wound around a core and must always be run in the direction of the arrow printed on the side of the wheel
    • Durable aluminum reducing bushings are available to accommodate most arbor sizes

Tech Specs

Back To Top
Diameter(in) 10 In.
Attachment Type Center Mount
Brand Norton
Product Category Abrasives
Material Silicon Carbide
Density 9 Density
Thickness 1 In.
Arbor Hole Size(in) 5 In.
Grade Fine Grit
Specification D0198
Max Operating Speed 3600
Series Bear-Tex
Thickness(in) 1.000000
Color Gray
