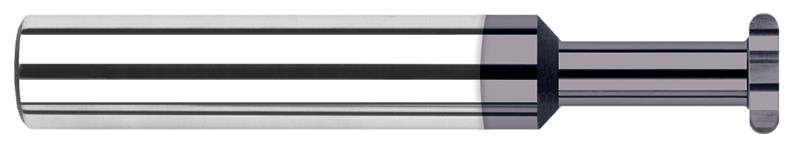

0.1250 in. (1/8) Cutter Diameter x 0.0075 in. Radius x 0.1870 in. (3/16) Neck Length 6 Flute AlTiN Coated Carbide Full Radius Keyseat Cutter

  • Item Code: 67507-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Reach Multiple (1.5x)
Decimal Diameter 0.1250"
Neck Diameter 0.0620" (1/16)
Neck Length 0.1870" (3/16)
Type I
Number of Flutes 6
Overall Length 1.5000" (1-1/2)
Brand Harvey Tool
Fractional Diameter 1/8"
Radial Depth of Cut 0.0220"
Cutter Width 0.0150" (1/64)
Weldon Flat N
Material Solid Carbide
Radius Decimal 0.0075"
Shank Diameter 0.1250" (1/8)
