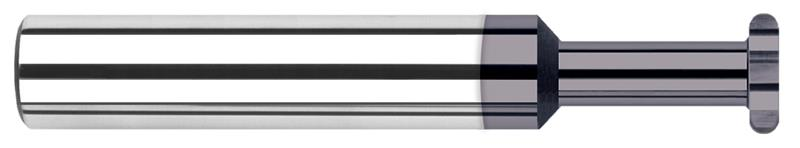

0.5000 in. (1/2) Cutter Diameter x 0.0500 in. Radius x 0.7500 in. (3/4) Neck Length 6 Flute AlTiN Coated Carbide Full Radius Keyseat Cutter

  • Item Code: 67950-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 6
Shank Diameter 0.5000" (1/2)
Cutter Width 0.1000"
Neck Diameter 0.2500" (1/4)
Type I
Radial Depth of Cut 0.1150"
Reach Multiple (1.5x)
Brand Harvey Tool
Weldon Flat N
Coating/Finish AlTiN
Decimal Diameter 0.5000"
Neck Length 0.7500" (3/4)
Overall Length 3.0000" (3)
Material Solid Carbide
Radius Decimal 0.0500"
Fractional Diameter 1/2"
