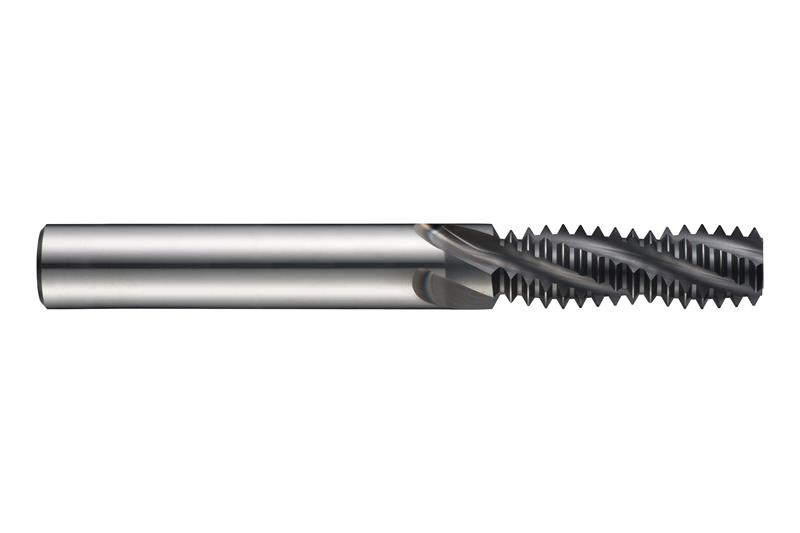

M8 x 1.25 mm Carbide Alcrona Pro Coated Finish RH 10 Deg. Spiral Flute Thread Mill Cutter
- Item Code: 6821297
- Brand: Dormer
- Unit Size: 1
Description
Thread and chamfer milling cutter, for ISO-Metric thread ? M8 with 1.25 mm pitch, dimensions according to DORMER standard with 3 flutes, 6.5mm cutting diameter and 10mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10? helix angle for milling a maximum of 17.5mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys
Tech Specs
Back To Top| Metric Diameter | 6.5 mm |
|---|---|
| Helix Angle | 10 Deg. |
| Coating/Finish | Alcrona Pro |
| Decimal Diameter | 0.2559" |
| Material | Solid Carbide |
| Brand | Dormer |
| Overall Length Inches | 2.8346 |
| Shank Style | Cylindrical shank DIN 6535 HB |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Metric | 72 mm |
