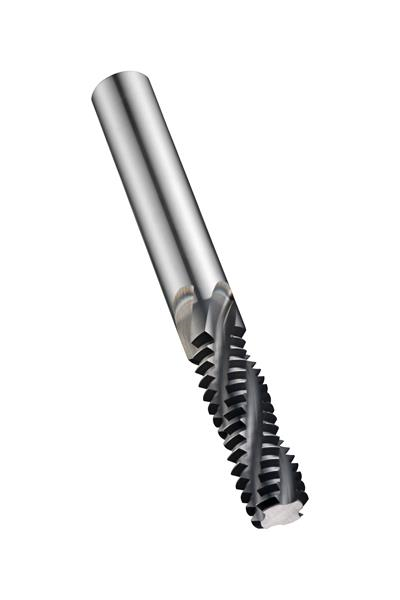

M14 x 2.00 mm Carbide Alcrona Pro Coated Finish RH 10 Deg. Spiral Flute Oil Feed Thread Mill Cutter
- Item Code: 6821300
- Brand: Dormer
- Unit Size: 1
Description
Thread milling cutter, for ISO-Metric thread ? M14 with 2.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27? helix angle for milling a maximum of 30mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron
Tech Specs
Back To Top| Material | Solid Carbide |
|---|---|
| Number of Flutes | 4 |
| Overall Length Inches | 3.2677 |
| Decimal Diameter | 0.3937" |
| Cutting Direction | Right |
| Coating/Finish | Alcrona Pro |
| Overall Length Metric | 83 mm |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Brand | Dormer |
| Helix Angle | 27 Deg. |
| Metric Diameter | 10 mm |
