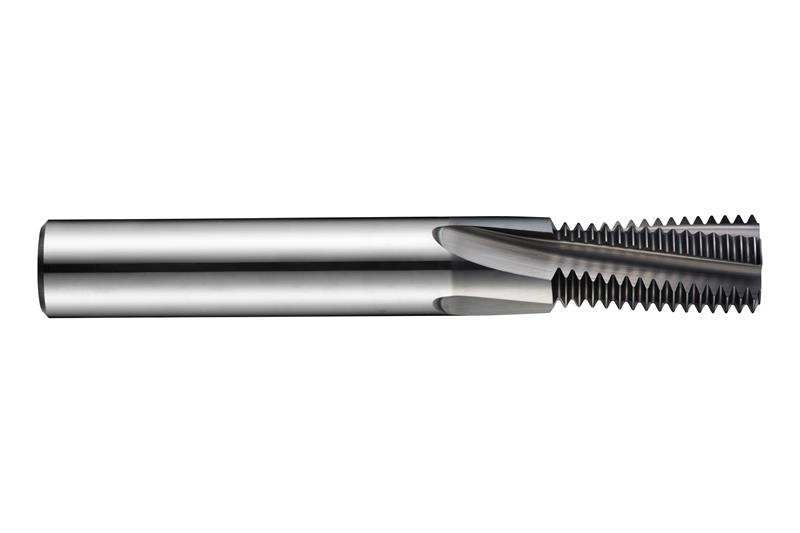

M8 x 1.25 mm Carbide Alcrona Pro Coated Finish RH 27 Deg. Spiral Flute Oil Feed Thread Mill Cutter
- Item Code: 6821309
- Brand: Dormer
- Unit Size: 1
Description
Thread milling cutter, for ISO-Metric thread ? M8 with 1.25 mm pitch, dimensions according to DORMER standard with 3 flutes, 6mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating, through coolant holes and 27? helix angle for milling a maximum of 17.5mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron
Tech Specs
Back To Top| Overall Length Metric | 65 mm |
|---|---|
| Brand | Dormer |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Material | Solid Carbide |
| Helix Angle | 27 Deg. |
| Cutting Direction | Right |
| Decimal Diameter | 0.2362" |
| Number of Flutes | 3 |
| Overall Length Inches | 2.5591 |
| Coating/Finish | Alcrona Pro |
| Metric Diameter | 6 mm |
