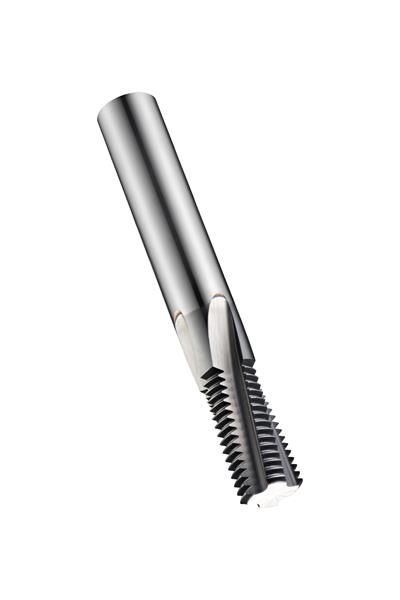

M20 x 2.50 mm Carbide Alcrona Pro Coated Finish RH 10 Deg. Spiral Flute Fine Thread Mill Cutter
- Item Code: 6821319
- Brand: Dormer
- Unit Size: 1
Description
Thread milling cutter, for ISO-Metric Fine thread ? M20 with 2.50 mm pitch, dimensions according to DORMER standard with 5 flutes, 16mm cutting diameter and 16mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10? helix angle for milling a maximum of 42.5mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, chilled cast-iron
Tech Specs
Back To Top| Overall Length Inches | 4.1339 |
|---|---|
| Metric Diameter | 16 mm |
| Number of Flutes | 5 |
| Decimal Diameter | 0.6299" |
| Coating/Finish | Alcrona Pro |
| Cutting Direction | Right |
| Brand | Dormer |
| Helix Angle | 10 Deg. |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Material | Solid Carbide |
| Overall Length Metric | 105 mm |
