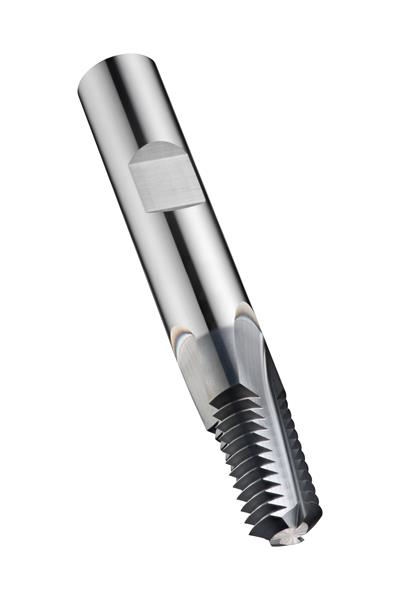

3/4 in. x 10 in. Carbide Alcrona Pro Coated Finish RH 27 Deg. Spiral Flute Thread Mill Cutter
- Item Code: 6821341
- Brand: Dormer
- Unit Size: 1
Description
Thread milling cutter, for Unified National Coarse thread ? UNC 3/4" with 10 TPI, dimensions according to DORMER standard with 5 flutes, 14mm cutting diameter and 14mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10? helix angle for milling a maximum of 32mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Decimal Diameter | 0.5512" |
| Overall Length Metric | 83 mm |
| Helix Angle | 10 Deg. |
| Cutting Direction | Right |
| Shank Style | Cylindrical shank DIN 6535 HB |
| Coating/Finish | Alcrona Pro |
| Metric Diameter | 14 mm |
| Material | Solid Carbide |
| Overall Length Inches | 3.2677 |
| Number of Flutes | 5 |
