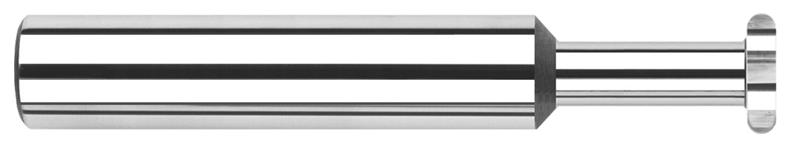

0.1875 in. (3/16) Cutter Diameter x 0.0156 in. (1/64) Radius x 0.2810 in. (9/32) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 68315-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 6
Decimal Diameter 0.1875"
Radial Depth of Cut 0.0370"
Reach Multiple (1.5x)
Shank Diameter 0.1875" (3/16)
Brand Harvey Tool
Radius Fractional 1/64"
Coating/Finish None
Overall Length 2.0000" (2)
Radius Decimal 0.0156"
Type I
Neck Diameter 0.0930" (3/32)
Cutter Width 0.0312" (1/32)
Fractional Diameter 3/16"
Material Solid Carbide
Neck Length 0.2810" (9/32)
