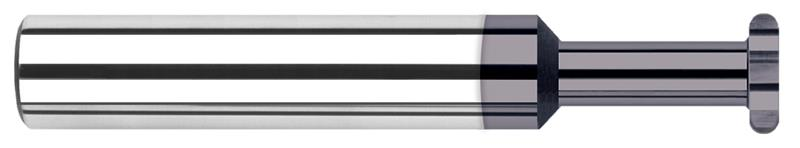

0.1875 in. (3/16) Cutter Diameter x 0.0250 in. Radius x 0.2810 in. (9/32) Neck Length 6 Flute AlTiN Coated Carbide Full Radius Keyseat Cutter

  • Item Code: 68325-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0500"
Reach Multiple (1.5x)
Shank Diameter 0.1875" (3/16)
Fractional Diameter 3/16"
Radial Depth of Cut 0.0370"
Radius Decimal 0.0250"
Decimal Diameter 0.1875"
Number of Flutes 6
Overall Length 2.0000" (2)
Weldon Flat N
Coating/Finish AlTiN
Type I
Neck Diameter 0.0930" (3/32)
Brand Harvey Tool
Material Solid Carbide
Neck Length 0.2810" (9/32)
