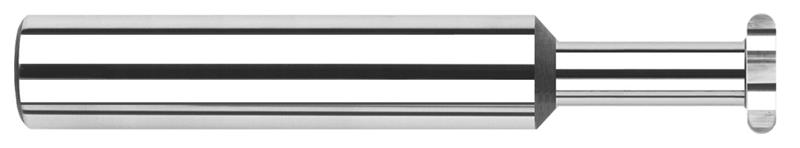

0.3750 in. (3/8) Cutter Diameter x 0.0500 in. Radius x 0.5630 in. Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 68450
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish None
Material Solid Carbide
Radius Decimal 0.0500"
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Radial Depth of Cut 0.0840"
Type I
Reach Multiple (1.5x)
Shank Diameter 0.3750" (3/8)
Decimal Diameter 0.3750"
Fractional Diameter 3/8"
Cutter Width 0.1000"
Neck Diameter 0.1870" (3/16)
Neck Length 0.5630"
