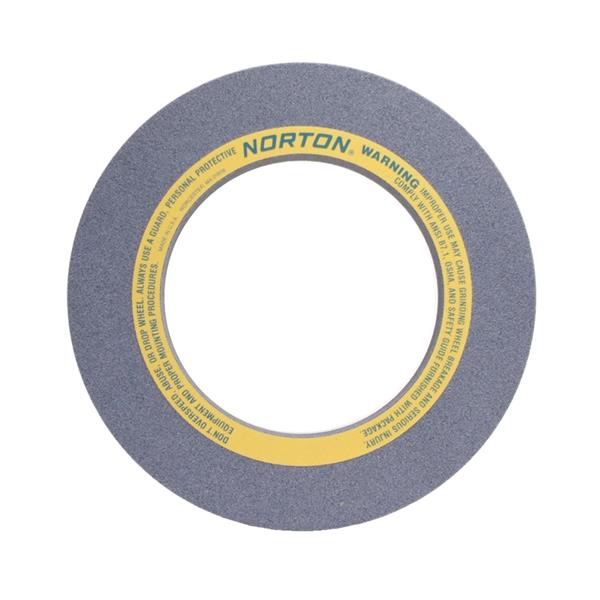

20 x 2 x 12 Inch 32A Cylindrical Wheel Type 01 32A46-I8VBE

  • Item Code: 69078665455
  • Brand: Norton
  • Unit Size: 1

Description

Cylindrical wheels are used most often when the part is held between centers and in chucks. There are three methods of cylindrical grinding: plunge, traverse, and angular. Plunge grinding wheels are thrust or plunged into the part, traverse grinding wheels move across the part, and angular grinding wheels contact the part at an angle.

Features Tech Specs

Features

Back To Top
    • Sharp monocrystalline 32A aluminum oxide purple grain is the industry's most versatile abrasive
    • The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding
    • Grinds with an exceptional cool, fast cutting action, requires minimum dressing
    • Outstanding form holding
    • Better choice for medium to heavy stock removal

Tech Specs

Back To Top
Brand Norton
Grit 46
Max Operating Speed 1245
Color Purple
Series 32A
Material Aluminum Oxide
Grade Coarse
Thickness 2 In.
Wheel Type Type 01
Diameter(in) 20 In.
Specification 32A46-I8VBE
Thickness(in) 2.000000
Arbor Hole Size(in) 12 In.
