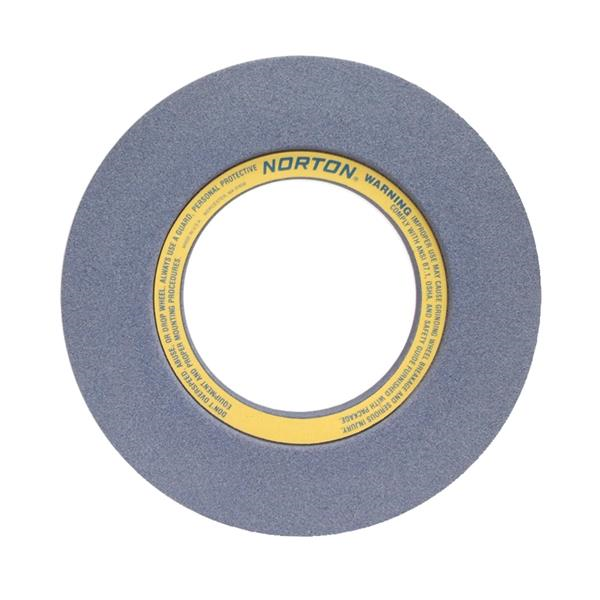

20 x 3 x 10 Inch 32A Cylindrical Wheel Type 07 32A46-I8VBE

  • Item Code: 69078665575
  • Brand: Norton
  • Unit Size: 1

Description

Cylindrical wheels are used most often when the part is held between centers and in chucks. There are three methods of cylindrical grinding: plunge, traverse, and angular. Plunge grinding wheels are thrust or plunged into the part, traverse grinding wheels move across the part, and angular grinding wheels contact the part at an angle.

Features Tech Specs

Features

Back To Top
    • Sharp monocrystalline 32A aluminum oxide purple grain is the industry's most versatile abrasive
    • The most versatile vitrified bond, especially recommended for toolroom, cylindrical, and surface grinding
    • Grinds with an exceptional cool, fast cutting action, requires minimum dressing
    • Outstanding form holding
    • Better choice for medium to heavy stock removal

Tech Specs

Back To Top
Max Operating Speed 1245
Recess Depth A 5/8 In.
Recess Depth B 5/8 In.
Recess Diameter A 12-1/4 In.
Brand Norton
Recess Diameter B 12-1/4 In.
Thickness 3 In.
Wheel Type Type 07
Arbor Hole Size(in) 10 In.
Grit 46
Material Aluminum Oxide
Series 32A
Color Purple
Grade Coarse
Thickness(in) 3.000000
Diameter(in) 20 In.
Specification 32A46-I8VBE
