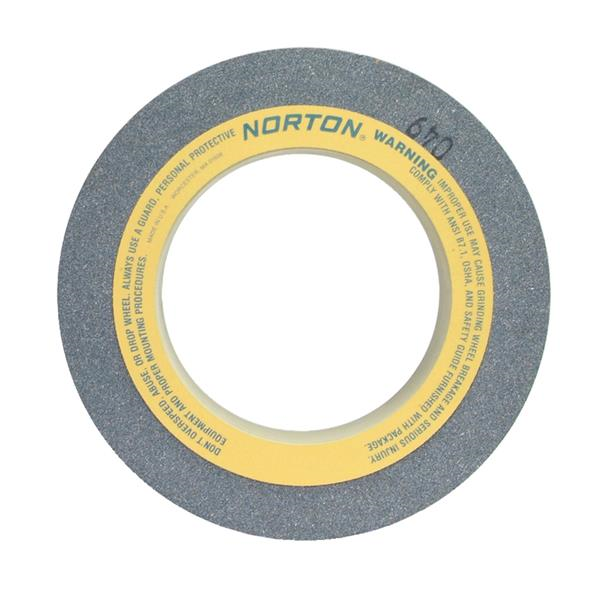

20 x 4 x 12 Inch 64A Centerless Wheel Type 01 64A60-KVCE

  • Item Code: 69078666723
  • Brand: Norton
  • Unit Size: 1

Description

Centerless grinding is a production process that produces extremely close tolerances on metal cylindrical forms or parts. Centerless grinding is used on a wide variety of workpieces. The key components in the process are the grinding wheel, the work rest blade (used to support the work) and the regulating or feed wheel (the drive mechanism for the workpiece).

Features Tech Specs

Features

Back To Top
    • A good intermediate type aluminum oxide abrasive blend for production centerless applications
    • A superior vitrified bond that maintains high grinding rates without wheel breakdown
    • Good choice for grinding soft and hard steels and variety of materials
    • Ideal when initial price is a main purchasing consideration
    • Made in USA

Tech Specs

Back To Top
Specification 64A60-KVCE
Brand Norton
Grade Medium
Wheel Type Type 01
Material Aluminum Oxide
Thickness(in) 4.000000
Diameter(in) 20 In.
Max Operating Speed 1625
Series 64A
Arbor Hole Size(in) 12 In.
Color Brown
Grit 60
Thickness 4 In.
