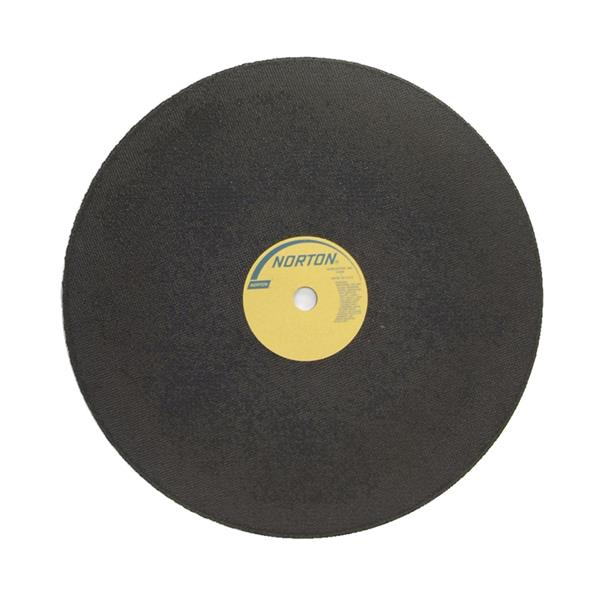

24 x 7/32 x 1-3/4 Inch B97 Foundry Cut-Off Wheel Reinforced Type 01/41 90A204-YB97B

  • Item Code: 69083150382
  • Brand: Norton
  • Unit Size: 1

Description

Norton foundry cut-off wheels are designed with abrasives, bonds and reinforcement types to provide the optimal performance on all high alloy steels, titanium, cast iron and carbon/low alloy steel. Premium grain and bond technology provide foundries the low total cost for their cut-off applications.

Features Tech Specs

Features

Back To Top
    • Premium 90A abrasive offer an excellent mixture of aluminum oxide and ceramic alumina for high alloy steels and titanium
    • High performance B97 bond for maximum performance in the most demanding applications
    • Bond and reinforcement engineered to machine parameters and materials of the foundry market
    • Optimal bond hardness where an excellent blend of cut rate and life is needed
    • Made in the USA

Tech Specs

Back To Top
Thickness 7/32 In.
Diameter(in) 24 In.
Thickness(in) 0.218750
Grit 204
Material Aluminum Oxide/Zirconia Alumina
Specification 90A204-YB97B
Wheel Type Type 01/41
Arbor Hole Size(in) 1-3/4 In.
Color Brown
Series B97
Brand Norton
Grade Coarse
Max Operating Speed 2260
