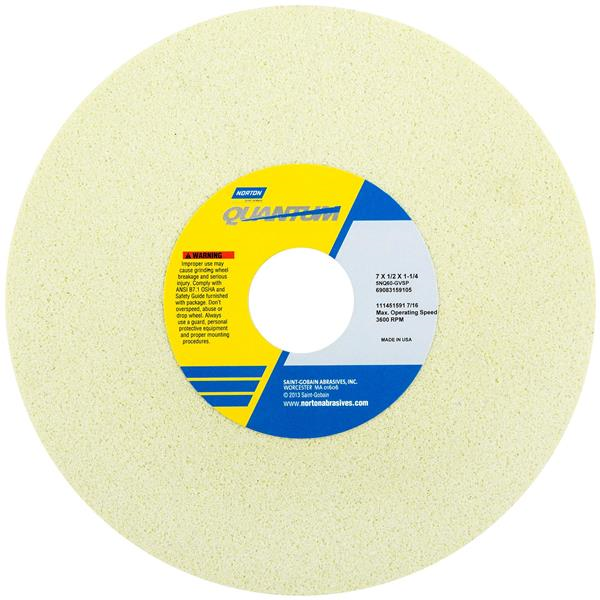

7 x 1/2 x 1-1/4 Inch Quantum Toolroom Wheel Type 01 5NQ60-JVS
- Item Code: 69083159106
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision form holding vitrified toolroom wheels maximize your productivity. Available in latest generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- Revolutionary, proprietary, engineered ceramic grain shape and chemistry for all low, medium and high force applications ranging from cast iron, to stainless steel and hard to grind Inconel and titanium
- Proven tough vitrified bond stands up to extreme grinding forces
- 33% to 100% longer life, 30% higher MRR, and 15% lower threshold power vs. competitive ceramic products
- Best choice for production grinding: versatility, maximum performance and lowest total costs
- Made in USA in ISO certified facility
Tech Specs
Back To Top| Specification | 5NQ60-JVS |
|---|---|
| Material | Ceramic Alumina |
| Arbor Hole Size(in) | 1-1/4 In. |
| Color | Green |
| Grade | Medium |
| Brand | Norton |
| Grit | 60 |
| Thickness(in) | 0.500000 |
| Diameter(in) | 7 In. |
| Thickness | 1/2 In. |
| Max Operating Speed | 3600 |
| Series | Quantum |
| Wheel Type | Type 01 |
