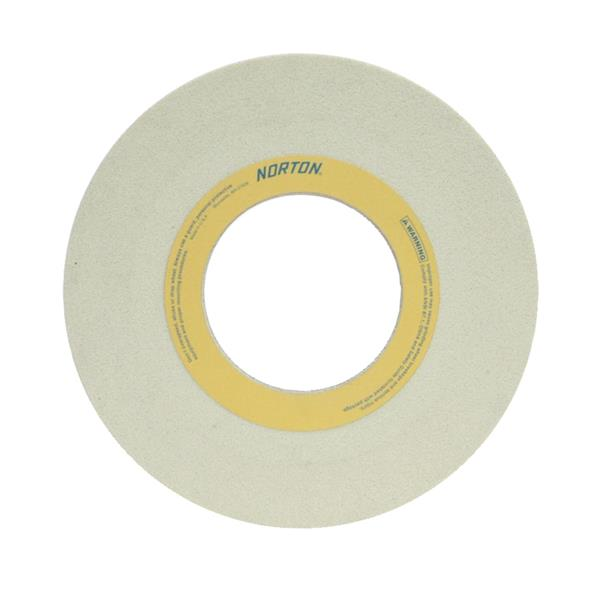

12 x 1-1/2 x 5 Inch Quantum Cylindrical Wheel Type 01 5NQ60-GVSP
- Item Code: 69083159117
- Brand: Norton
- Unit Size: 1
Description
Used on surface, cylindrical, and tool and cutter grinders, Norton precision, form-holding vitrified toolroom wheels maximize your productivity. Available in latest-generation ceramic alumina, aluminum oxide, and silicon carbide for every ferrous and nonferrous MRO, small job shop, and production operation.
Features
Back To Top- Revolutionary, proprietary, engineered ceramic grain shape and chemistry for all low, medium and high force applications ranging from cast iron, to stainless steel and hard to grind Inconel and titanium
- Proven porous vitrified bond, especially recommended for toolroom and surface grinding on medium to wide areas of contact and heat sensitive materials
- 33% to 100% longer life, 30% higher MRR, and 15% lower threshold power vs. competitive ceramic products
- Best choice for production grinding: versatility, maximum performance and lowest total costs
- Made in USA in ISO certified facility
Tech Specs
Back To Top| Material | Ceramic Alumina |
|---|---|
| Grade | Medium |
| Thickness | 1-1/2 In. |
| Thickness(in) | 1.500000 |
| Brand | Norton |
| Grit | 60 |
| Specification | 5NQ60-GVSP |
| Color | Green |
| Max Operating Speed | 2070 |
| Arbor Hole Size(in) | 5 In. |
| Diameter(in) | 12 In. |
| Series | Quantum |
| Wheel Type | Type 01 |
