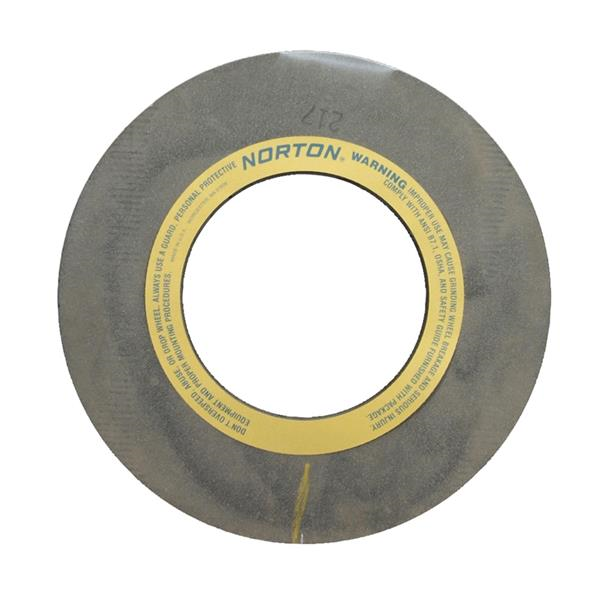

24 Inch x 20 Inch x 305 mm 32AC Centerless Wheel Type 01 32AC54-SB

  • Item Code: 69083166553
  • Brand: Norton
  • Unit Size: 1

Description

Centerless grinding is a production process that produces extremely close tolerances on metal cylindrical forms or parts. Centerless grinding is used on a wide variety of workpieces. The key components in the process are the grinding wheel, the work rest blade (used to support the work) and the regulating or feed wheel (the drive mechanism for the workpiece).

Features Tech Specs

Features

Back To Top
    • Aluminum oxide/silicon carbide abrasive blend several different materials from high to low tensile strength
    • Strong resin bond
    • Norton resin bond centerless wheels are the choice for stock removal, long irregular paths, and faster through feed grinding
    • Ideal when one wheel is used to grind several different materials, from high to low tensile strength
    • Made in USA in ISO certified facility

Tech Specs

Back To Top
Grit 54
Specification 32AC54-SB
Arbor Hole Size(in) 305 mm
Diameter(in) 24 In.
Grade Medium
Max Operating Speed 1510
Wheel Type Type 01
Color Brown
Thickness(in) 20.000000
Brand Norton
Thickness 20 In.
Material Silicon Carbide/Aluminum Oxide
Series 32AC
