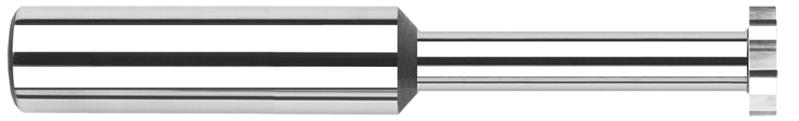

0.3125 in. (5/16) Cutter Diameter x 0.1870 in. (3/16) Width x 1.0000 in. (1) Neck Length 6 Flute Carbide Square Keyseat Cutter

  • Item Code: 69770-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.0680"
Fractional Diameter 5/16"
Neck Diameter 0.1560" (5/32)
Type I
Brand Harvey Tool
Cutter Width 0.1870" (3/16)
Decimal Diameter 0.3125"
Neck Length 1.0000" (1)
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Reach Multiple (3x)
Coating/Finish None
Material Solid Carbide
Shank Diameter 0.3125" (5/16)
