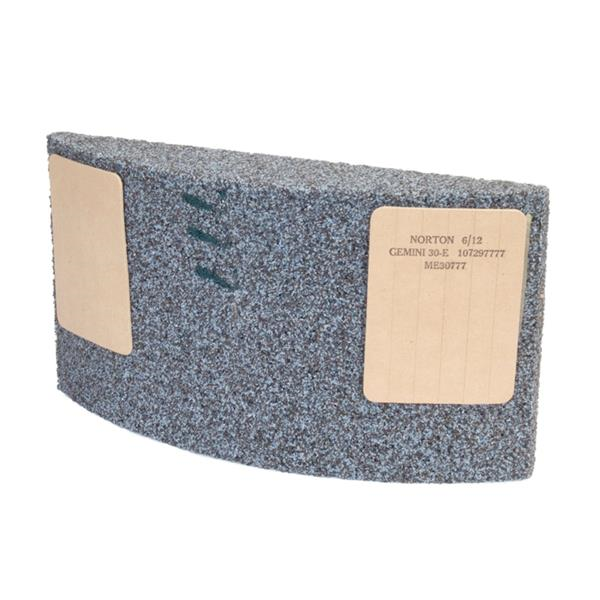

11-1/4 x 2-1/4 x 6 Inch Gemini Surface Grinding Segment GEMINI 30-F
- Item Code: 69936699709
- Brand: Norton
- Unit Size: 1
Description
Surface grinding segments are generally used to grind flat stock or flat surfaces within a workpiece. The segment moves over the workpiece in a flat plane or vice versa. Applications can vary from heavy, rapid stock removal to precision tolerance operations.
Features
Back To Top- Specially blended aluminum oxide abrasive for many surface grinding applications
- The porous vitrified bond increases chip clearance and maximizes coolant flow, reduces loading and is cool cutting in heat-sensitive applications
- For use in Cortland chucks on surface grinding machines
- Good choice when a broad variety of parts are ground on one machine
- Consistent performance at an economical initial price
Tech Specs
Back To Top| Width | 11-1/4 In. |
|---|---|
| Length | 6 In. |
| Series | Gemini |
| Thickness(in) | 2.250000 |
| Wheel Type | Type 31 |
| Material | Aluminum Oxide |
| Thickness | 2-1/4 In. |
| Grit | 30 |
| Length(in) | 6.000000 |
| Specification | GEMINI 30-F |
| Brand | Norton |
| Color | Gray |
| Width(in) | 11.250000 |
