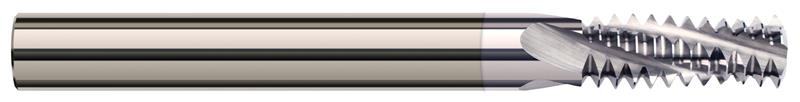

0.0650 in. Cutter Diameter x 0.1250 in. (1/8) Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 2-56 Thread Milling Cutter

  • Item Code: 70010-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • AlTiN coating works great in steels up to 60Rc
    • TiB2 coating is outstanding in aluminum
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Helical flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish TiB2
Shank Diameter 0.1250" (1/8)
Length of Cut 0.1250" (1/8)
Number of Flutes 3
Overall Length 2.0000" (2)
Brand Harvey Tool
Included Angle 60
Material Solid Carbide
Size 2-56
Cutter Diameter Decimal 0.0650"
