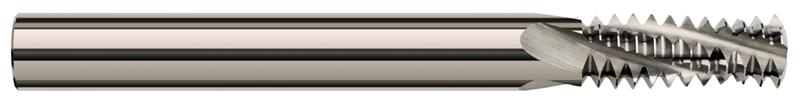

0.0950 in. Cutter Diameter x 0.2280 in. Length of Cut 3 Flute Carbide Multi-Form 5-44 Thread Milling Cutter

  • Item Code: 70020-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • AlTiN coating works great in steels up to 60Rc
    • TiB2 coating is outstanding in aluminum
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Helical flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 60
Coating/Finish None
Material Solid Carbide
Overall Length 2.0000" (2)
Size 5-44
Cutter Diameter Decimal 0.0950"
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
Length of Cut 0.2280"
Number of Flutes 3
