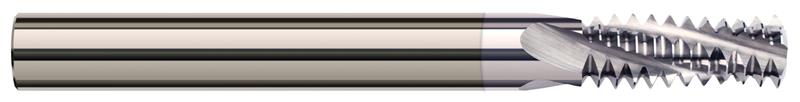

0.2350 in. Cutter Diameter x 0.6250 in. (5/8) Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 5/16-18 Thread Milling Cutter

  • Item Code: 70054-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • AlTiN coating works great in steels up to 60Rc
    • TiB2 coating is outstanding in aluminum
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Helical flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Included Angle 60
Cutter Diameter Decimal 0.2350"
Length of Cut 0.6250" (5/8)
Size 5/16-18
Number of Flutes 3
Coating/Finish TiB2
Overall Length 2.5000" (2-1/2)
