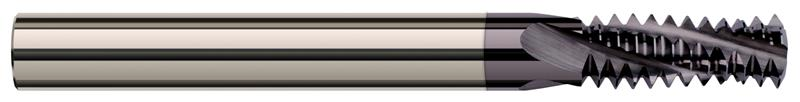

0.3700 in. Cutter Diameter x 1.0000 in. (1) Length of Cut 6 Flute AlTiN Coated Carbide Multi-Form 1/2-32 Thread Milling Cutter

  • Item Code: 70089-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • AlTiN coating works great in steels up to 60Rc
    • TiB2 coating is outstanding in aluminum
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Helical flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Size 1/2-32
Material Solid Carbide
Overall Length 3.5000" (3-1/2)
Brand Harvey Tool
Coating/Finish AlTiN
Included Angle 60
Length of Cut 1.0000" (1)
Number of Flutes 6
Shank Diameter 0.3750" (3/8)
Cutter Diameter Decimal 0.3700"
