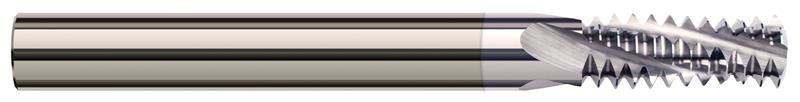

0.2450 in. Cutter Diameter x 0.4370 in. (7/16) Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 1/16, 1/8-27 NPT Thread Milling Cutter

  • Item Code: 70204-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cuts internal and external 60? National Pipe Taper (N.P.T.) threads
    • Mills right hand and left hand threads
    • Helical flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Shank Diameter 0.2500" (1/4)
Angle per Side 1�47'
Cutter Diameter Decimal 0.2450"
Material Solid Carbide
Included Angle 60
Overall Length 2.5000" (2-1/2)
Size 1/16, 1/8-27
Length of Cut 0.4370" (7/16)
Number of Flutes 3
Coating/Finish TiB2
