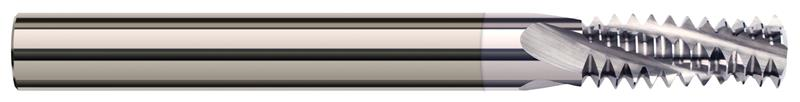

0.3050 in. Cutter Diameter x 0.6250 in. (5/8) Length of Cut 4 Flute TiB2 Coated 4 Flute Carbide Multi-Form 1/4, 3/8-18 NPT Thread Milling Cutter

  • Item Code: 70214-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cuts internal and external 60? National Pipe Taper (N.P.T.) threads
    • Mills right hand and left hand threads
    • Helical flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 1�47'
Included Angle 60
Overall Length 3.0000" (3)
Brand Harvey Tool
Material Solid Carbide
Cutter Diameter Decimal 0.3050"
Shank Diameter 0.3125" (5/16)
Length of Cut 0.6250" (5/8)
Number of Flutes 4
Coating/Finish TiB2
Size 1/4, 3/8-18
