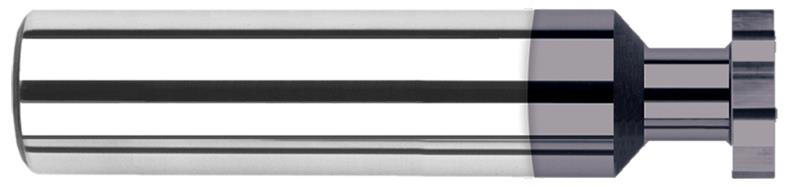

0.2500 in. (1/4) Cutter Diameter x 0.0150 in. (1/64) Width x 0.1250 in. (1/8) Neck Length 6 Flute AlTiN Coated Carbide Square Deep Keyseat Cutter

  • Item Code: 70815-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Coating/Finish AlTiN
Reach Multiple (0.5x)
Fractional Diameter 1/4"
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Neck Diameter 0.0780" (5/64)
Neck Length 0.1250" (1/8)
Radial Depth of Cut 0.0760"
Type II
Cutter Width 0.0150" (1/64)
Decimal Diameter 0.2500"
