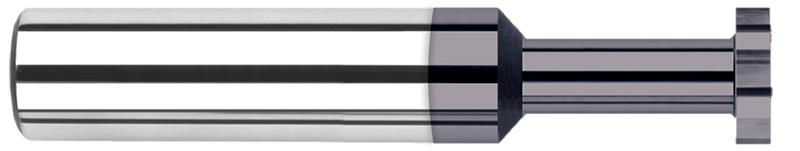

0.6250 in. (5/8) Cutter Diameter x 0.3750 in. (3/8) Width x 1.0000 in. (1) Neck Length 8 Flute AlTiN Coated Carbide Square Keyseat Cutter

  • Item Code: 70987-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Material Solid Carbide
Shank Diameter 0.6250" (5/8)
Cutter Width 0.3750" (3/8)
Neck Length 1.0000" (1)
Coating/Finish AlTiN
Overall Length 3.5000" (3-1/2)
Fractional Diameter 5/8"
Reach Multiple (1.5x)
Neck Diameter 0.3120" (5/16)
Type I
Decimal Diameter 0.6250"
Number of Flutes 8
Radial Depth of Cut 0.1460"
