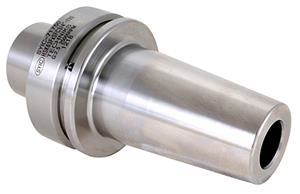

HSK63F x 20mm Inside Diameter x 100mm ShrinkFIT Toolholder
- Item Code: 71010-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Body Diameter (in) | 1.654 |
|---|---|
| Overall Length (mm) | 125 |
| Gage Length-Face Contact (mm) | 100 |
| Type | ShrinkFIT Tool Holder |
| Brand | Techniks |
| Gage Length (in) | 3.94 |
| Overall Diameter (mm) | 63 |
| Shank Range (in) | Exact Size |
| Body Diameter (mm) | 42 |
| Gage Length-Face Contact (in) | 3.94 |
| Nose Diameter (mm) | 33 |
| Shank Size (in) | 0.7874 |
| Mount | HSK63F |
| Style | Single-Ended |
| Collet Series | N/A |
| Gage Length (mm) | 100 |
| Material | H13 Steel |
| Nose Diameter (in) | 1.299 |
| Overall Diameter (in) | 2.48 |
| Overall Length (in) | 4.92 |
| Shank Size (mm) | 20 |
| Shank Range (mm) | Exact Size |
| Unit of Tool | Metric |
