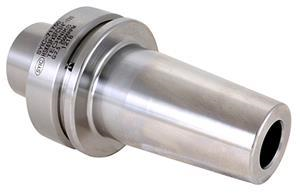

HSK63F x 25mm Inside Diameter x 115mm ShrinkFIT Toolholder
- Item Code: 71011-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Nose Diameter (mm) | 44 |
|---|---|
| Overall Length (in) | 5.51 |
| Brand | Techniks |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Shank Size (mm) | 25 |
| Overall Length (mm) | 140 |
| Type | ShrinkFIT Tool Holder |
| Overall Diameter (in) | 2.48 |
| Gage Length (mm) | 115 |
| Overall Diameter (mm) | 63 |
| Unit of Tool | Metric |
| Body Diameter (in) | 2.087 |
| Body Diameter (mm) | 53 |
| Gage Length-Face Contact (in) | 4.53 |
| Mount | HSK63F |
| Shank Size (in) | 0.9843 |
| Collet Series | N/A |
| Gage Length-Face Contact (mm) | 115 |
| Material | H13 Steel |
| Gage Length (in) | 4.53 |
| Nose Diameter (in) | 1.732 |
| Style | Single-Ended |
