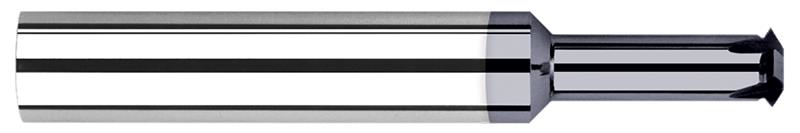

0.1350 in. Cutter Diameter x 0.3120 in. (5/16) Reach 4 Flute Amorphous Diamond Coated Carbide Single Form #10 Thread Milling Cutter

  • Item Code: 71040-C4
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill any pitch
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Material Solid Carbide
Included Angle 60
Size 10
Cutter Diameter Decimal 0.1350"
Length of Cut 0.0380"
Number of Flutes 4
Coating/Finish Amorphous Diamond
Neck Diameter 0.0700"
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Maximum Depth of Thread 0.3120" (5/16)
Overall Length 2.5000" (2-1/2)
