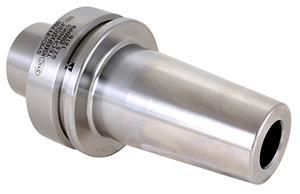

HSK63F x 1/4 I.D. x 3.15 Inch ShrinkFIT Toolholder
- Item Code: 71250-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Mount | HSK63F |
|---|---|
| Gage Length-Face Contact (mm) | 80 |
| Overall Length (mm) | 105 |
| Gage Length-Face Contact (in) | 3.15 |
| Nose Diameter (in) | 0.71 |
| Type | ShrinkFIT Tool Holder |
| Body Diameter (mm) | 26.92 |
| Shank Range (mm) | Exact Size |
| Shank Size (in) | 0.25 |
| Style | Single-Ended |
| Gage Length (mm) | 80 |
| Overall Diameter (in) | 2.48 |
| Overall Length (in) | 4.13 |
| Shank Range (in) | Exact Size |
| Shank Size (mm) | 6.35 |
| Collet Series | N/A |
| Material | H13 Steel |
| Unit of Tool | Inch |
| Body Diameter (in) | 1.06 |
| Brand | Techniks |
| Gage Length (in) | 3.15 |
| Nose Diameter (mm) | 18 |
| Overall Diameter (mm) | 63 |
