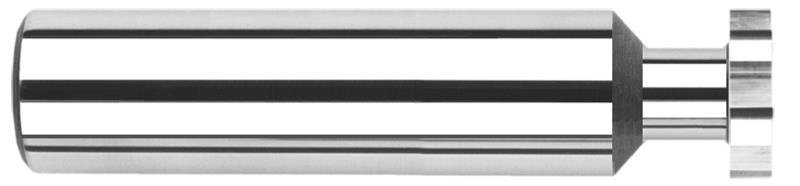

0.5000 in. (1/2) Cutter Diameter x 0.1250 in. (1/8) Width x 0.2500 in. (1/4) Neck Length 8 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 71260
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.2500" (1/4)
Number of Flutes 8
Cutter Width 0.1250" (1/8)
Type II
Coating/Finish None
Fractional Diameter 1/2"
Neck Diameter 0.1560" (5/32)
Reach Multiple (0.5x)
Decimal Diameter 0.5000"
Material Solid Carbide
Brand Harvey Tool
Overall Length 3.0000" (3)
Shank Diameter 0.5000" (1/2)
Radial Depth of Cut 0.1620"
