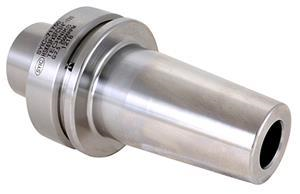

HSK63F x 3/8 Inch Inside Diameter x 3.74 Inch ShrinkFIT Toolholder
- Item Code: 71375
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 3.74 |
|---|---|
| Collet Series | N/A |
| Material | H13 Steel |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Style | Single-Ended |
| Type | ShrinkFIT Tool Holder |
| Gage Length-Face Contact (mm) | 95 |
| Mount | HSK63F |
| Nose Diameter (mm) | 23.9 |
| Shank Size (mm) | 9.53 |
| Brand | Techniks |
| Overall Diameter (mm) | 63 |
| Overall Length (in) | 4.72 |
| Shank Size (in) | 0.375 |
| Unit of Tool | Inch |
| Body Diameter (in) | 1.26 |
| Gage Length (in) | 3.74 |
| Overall Length (mm) | 120 |
| Body Diameter (mm) | 32 |
| Nose Diameter (in) | 0.94 |
| Gage Length (mm) | 95 |
| Overall Diameter (in) | 2.48 |
