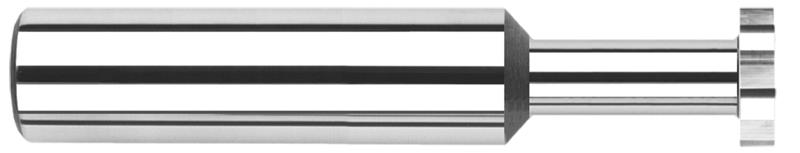

0.4375 in. (7/16) Cutter Diameter x 0.1250 in. (1/8) Width x 0.6250 in. (5/8) Neck Length 8 Flute Carbide Square Keyseat Cutter

  • Item Code: 71860-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish None
Decimal Diameter 0.4375"
Material Solid Carbide
Type I
Neck Length 0.6250" (5/8)
Overall Length 2.7500" (2-3/4)
Radial Depth of Cut 0.0990"
Reach Multiple (1.5x)
Cutter Width 0.1250" (1/8)
Fractional Diameter 7/16"
Neck Diameter 0.2190"
Number of Flutes 8
Shank Diameter 0.4375" (7/16)
