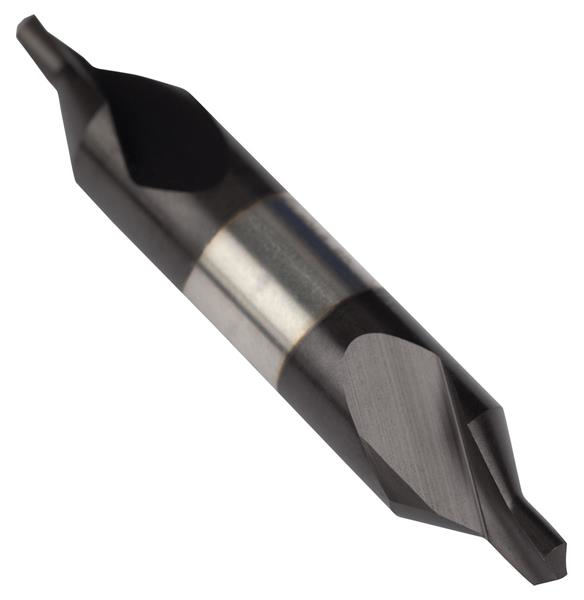

1.00 x 3.15 mm Cobalt Deep Purple TiAIN Coating 118 Deg. Center Drill
- Item Code: 7191762
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60? straight conical form, double ended and cylindrical body, 1.00mm drill diameter, a body diameter of 3.15mm and an overall length of 31mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and TiAlN coating for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Overall Length Metric | 31 mm |
|---|---|
| Decimal Size | 0.0394" |
| Shank Style | Cylindrical shank |
| Coating/Finish | TiAlN |
| Metric Size | 1.00 mm |
| Brand | Dormer |
| Cutting Direction | Right |
| Point Angle | 118 Deg. |
| Material | Cobalt |
| Overall Length Inches | 1.2205" |
