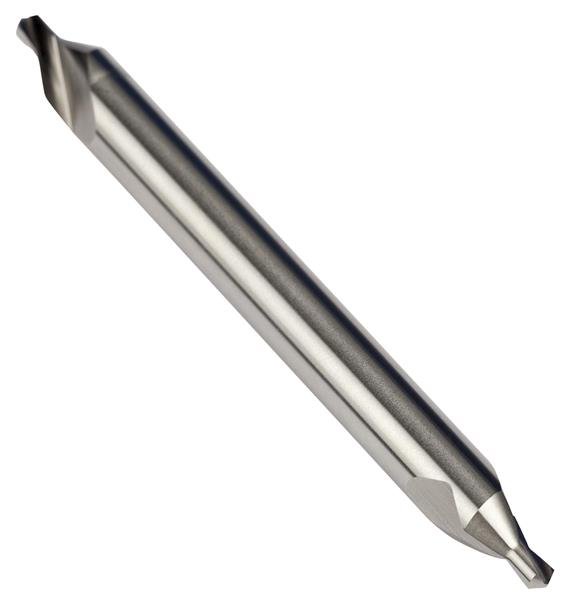

2.00 mm x 6.00 mm in. Cobalt (HSS-E) Bright Finish 118 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 7191817
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, 2.00mm drill diameter, a body diameter of 6.00mm and an overall length of 100mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, cobalt based HSS-E and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Material | Cobalt |
|---|---|
| Metric Diameter | 2.00 mm |
| Overall Length Decimal | 3.9370" |
| Brand | Dormer |
| Point Angle | 118 Deg. |
| Decimal Diameter | 0.0787" |
| Overall Length Metric | 100.00 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Shank Style | Cylindrical shank |
