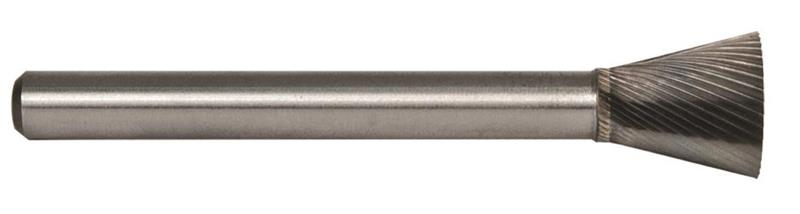

4.8mm Edge Hog® Back Taper, 10° Angle, Miniature Carbide Burr (SN-53M-D Standard Alt. Diamond -Double)
- Item Code: 72110027M
- Brand: MA Ford
- Unit Size: 1
Description
Edge Hog® - Series SA Inch
Cylindrical Flat End
Single cut burrs are designed with right hand spiral flutes that are designed for rapid stock removal, leaving a rougher finish than double cut burrs. They can be used on steel, stainless steel, cast iron and non-ferrous materials.
Features
Back To Top- Single cut burrs are designed with right hand spiral flutes that are designed for rapid stock removal, leaving a rougher finish than double cut burrs.
Tech Specs
Back To Top| Material | Solid Carbide |
|---|---|
| Series | Edge Hog® |
| Brand | MA Ford |
| Shank Diameter | 3mm |
| Metric Cutting Diameter | 4.80 mm |
| Overall Length | 38mm |
| Angle | 10° |
| Number of Flutes | 15/6 |
| Burr Shape | Taper |
| Length of Flute | 6.4mm |
| Shape Identifier | SN-53 |
