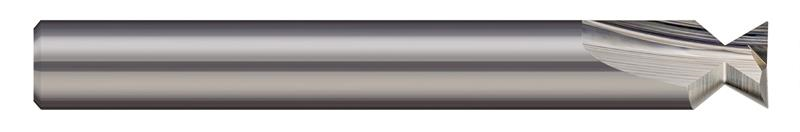

0.1250 in. (1/8) Cutter Diameter x 120&deg included 2 Flutes Carbide Dovetail Cutter

  • Item Code: 721708
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", .010", or .030" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish None
Fractional Cutting Diameter 1/8"
Overall Length Fractional 1-1/2"
Angle per Side 60
Shank Diameter 0.1250" (1/8)
Decimal Cutting Diameter 0.1250"
Length of Cut 0.0310" (1/32)
Neck Diameter 0.0420"
Number of Flutes 2
Included Angle 120
Material Solid Carbide
Overall Length Decimal 1.5000"
