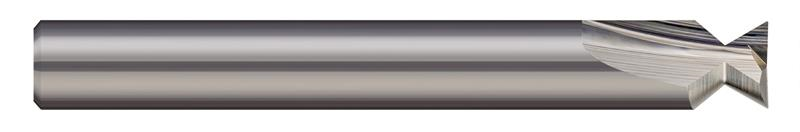

0.5000 in. (1/2) Cutter Diameter x 120&deg included 3 Flutes Carbide Dovetail Cutter

  • Item Code: 721732
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", .010", or .030" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Cutting Diameter 1/2"
Included Angle 120
Length of Cut 0.1000"
Decimal Cutting Diameter 0.5000"
Angle per Side 60
Overall Length Decimal 3.0000"
Neck Diameter 0.1740"
Shank Diameter 0.5000" (1/2)
Coating/Finish None
Number of Flutes 3
Brand Harvey Tool
Material Solid Carbide
Overall Length Fractional 3"
