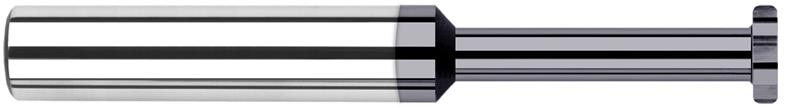

0.1250 in. (1/8) Cutter Diameter x 0.0050 in. Radius x 0.0310 in. (1/32) Width x 0.3750 in. (3/8) Neck Length 6 Flutes AlTiN Coated CarbideCorner Radius Standard Keyseat Cutter

  • Item Code: 732231-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 1/8"
Shank Diameter 0.1250" (1/8)
Top Corner Radius 0.005
Brand Harvey Tool
Neck Length 0.3750" (3/8)
Reach Multiple (3x)
Number of Flutes 6
Radial Depth of Cut 0.0215"
Corner Radius Decimal 0.0050"
Decimal Diameter 0.1250"
Material Solid Carbide
Coating/Finish AlTiN
Neck Diameter 0.0620" (1/16)
Overall Length Decimal 1.5000"
Overall Length Fractional 1-1/2"
Cutter Width 0.0310" (1/32)
Type I
