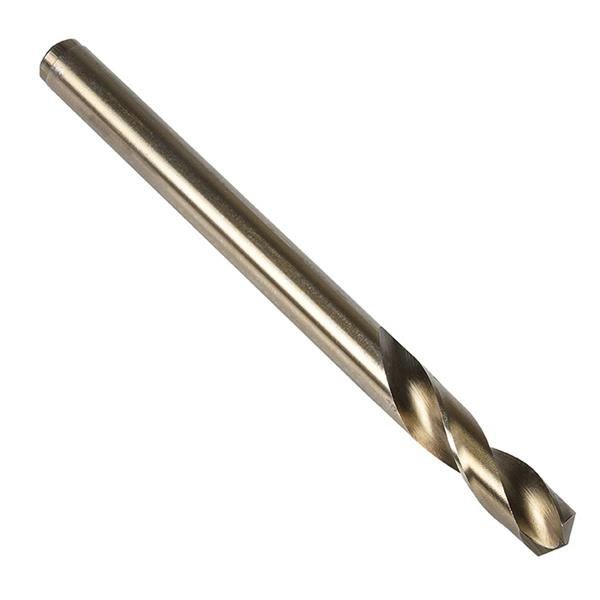

4.20 mm HSS TiAIN 90 Deg. Point RH Spotting Drill
- Item Code: 7341680
- Brand: Dormer
- Unit Size: 1
Description
Step drill with 90? included step angle, DIN 6535HA parallel shank and a drilling-pilot diameter of 4.20mm with a length of 13.60mm, a countersink diameter of maximum 6.00mm and an overall length of 66mm, according to DORMER standard to produce a thread tapping drill hole with chamfer for M5 thread, solid carbide and bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic, martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Coating/Finish | TiAlN |
| Flute Type | Standard Spiral |
| Metric Diameter | 4.20 mm |
| Overall Length Inches | 2.5984 |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Material | Solid Carbide |
| Point Angle | 140 Deg. |
| Cutting Direction | Right |
| Overall Length Metric | 66 mm |
| Decimal Diameter | 0.1654" |
