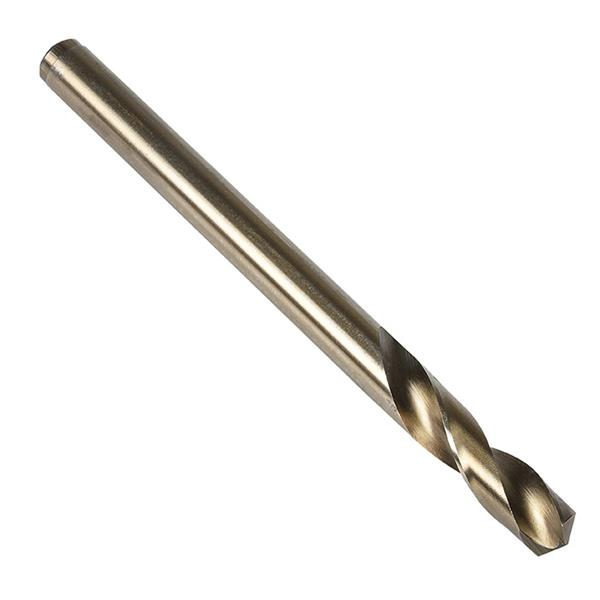

10.40 mm HSS TiAIN 90 Deg. Point RH Spotting Drill
- Item Code: 7341685
- Brand: Dormer
- Unit Size: 1
Description
Step drill with 90? included step angle, DIN 6535HA parallel shank and a drilling-pilot diameter of 10.40mm with a length of 30.00mm, a countersink diameter of maximum 14.00mm and an overall length of 107mm, according to DORMER standard to produce a thread tapping drill hole with chamfer for M12 thread, solid carbide and bright finish for machining free machining, plain carbon, alloy and tool steel, ferritic, martensitic, austenitic and super-austenitic, Duplex or precipitation hardening stainless steel, grey, malleable, ductile, austenitic or austempered ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Metric Diameter | 10.40 mm |
| Shank Style | Cylindrical shank DIN 6535 HA |
| Overall Length Metric | 107 mm |
| Material | Solid Carbide |
| Point Angle | 140 Deg. |
| Coating/Finish | TiAlN |
| Decimal Diameter | 0.4094" |
| Overall Length Inches | 4.2126 |
| Flute Type | Standard Spiral |
| Brand | Dormer |
