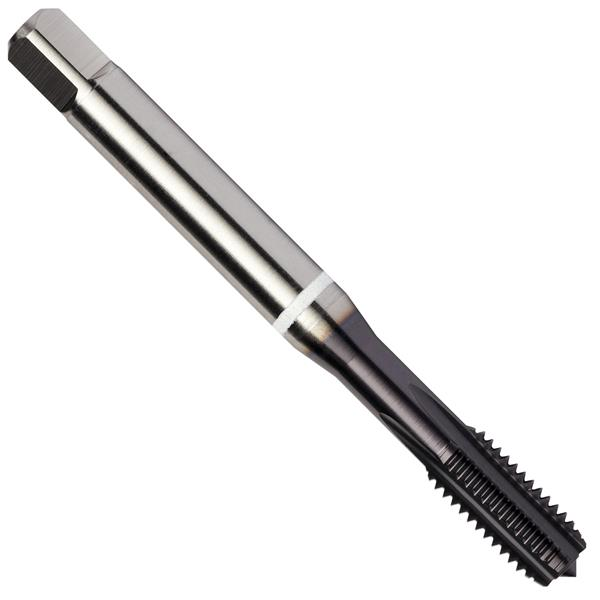

3/8-24 in. UNF Carbide (HSS-E) TiAIN Finish RH 4 Flute 2BX Semi-Bottoming Straight Flute Machine Tap
- Item Code: 7350225
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/8" with 24 TPI and H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810" shank and 0.2840" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Number of Flutes | 4 |
| Coating/Finish | TiAlN/Top |
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
