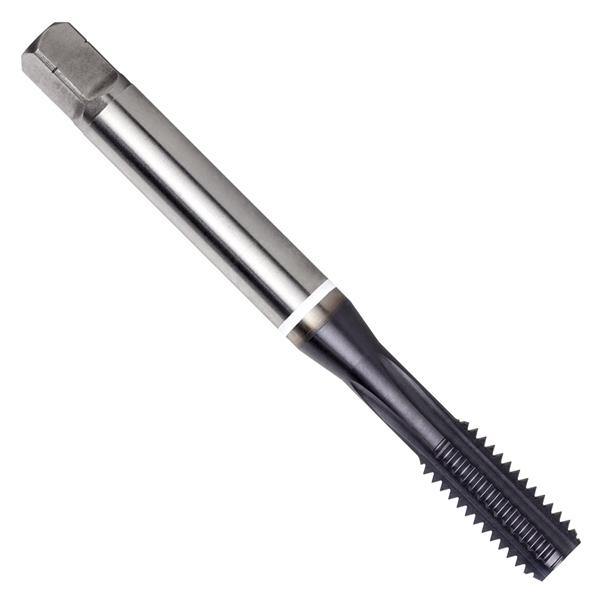

7/16-14 in. UNC Carbide (HSS-E) TiAIN Finish RH 4 Flute 2BX Full Bottoming Straight Flute Machine Tap
- Item Code: 7350234
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for Unified National Coarse thread UNC 7/16" with 14 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3230" shank and 0.2400" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Tech Specs
Back To Top| Shank Style | Cylindrical shank with Square |
|---|---|
| Cutting Direction | Right |
| Coating/Finish | TiAlN/Top |
| Number of Flutes | 4 |
| Material | HSS Cobalt Powdered Metal |
| Brand | Dormer |
