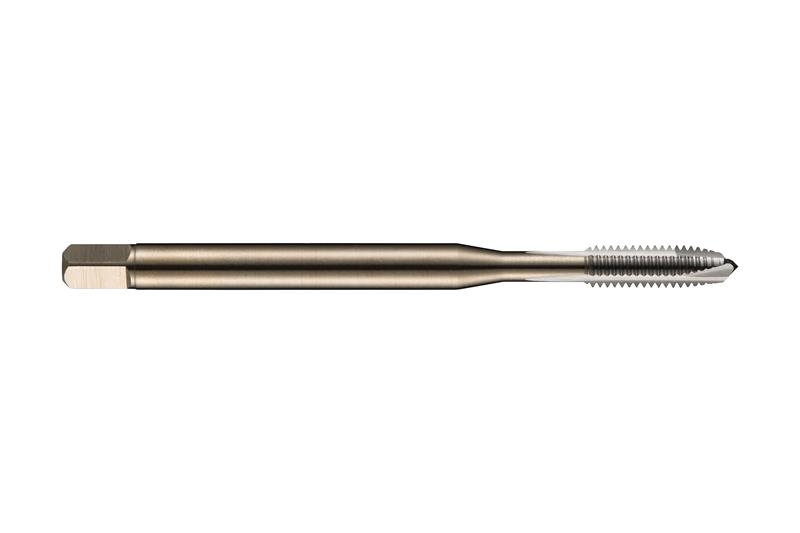

5/8-18 in. UNF Carbide (HSS-E) TiAIN Finish RH 4 Flute 2BX Full Bottoming Straight Flute Machine Tap
- Item Code: 7350245
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for Unified National Fine thread UNF 5/8" with 18 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800" shank and 0.3580" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Tech Specs
Back To Top| Coating/Finish | TiAlN/Top |
|---|---|
| Brand | Dormer |
| Number of Flutes | 4 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
