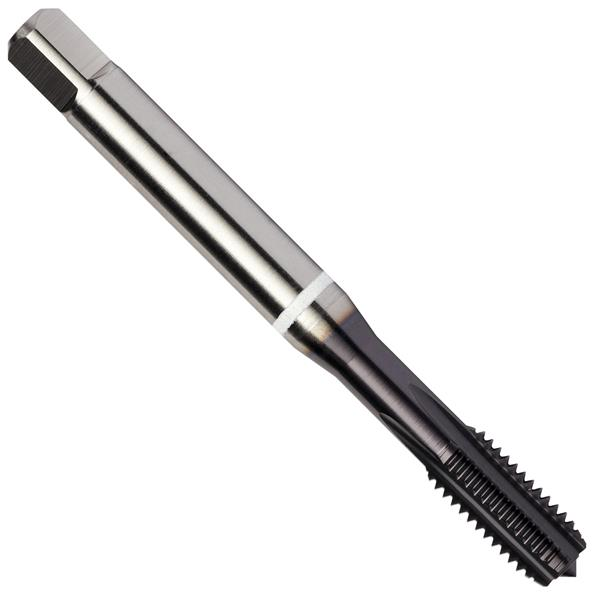

8 mm x 1.25 mm Coarse Cobalt (HSS-E) TiAIN Finish 4 Flute RH 6HX Semi-Bottoming Straight Flute Machine Tap
- Item Code: 7350251
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Shank Style | Cylindrical shank with Square |
| Material | HSS Cobalt Powdered Metal |
| Number of Flutes | 4 |
| Brand | Dormer |
| Coating/Finish | TiAlN/Top |
| Overall Length Metric | 90 mm |
| Overall Length Inches | 3.5433 |
