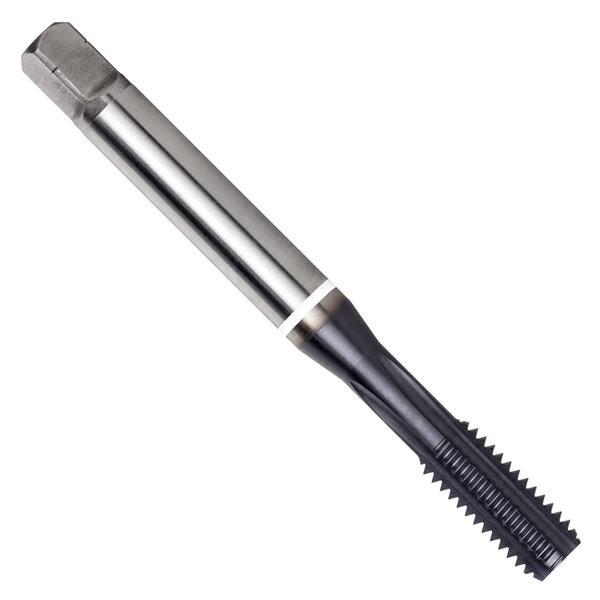

12 mm x 1.75 mm Coarse Cobalt (HSS-E) TiAIN Finish 4 Flute RH 6HX Full Bottoming Straight Flute Machine Tap
- Item Code: 7350268
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Overall Length Metric | 110 mm |
| Shank Style | Cylindrical shank with Square |
| Number of Flutes | 4 |
| Brand | Dormer |
| Coating/Finish | TiAlN/Top |
| Material | HSS Cobalt Powdered Metal |
| Overall Length Inches | 4.3307 |
