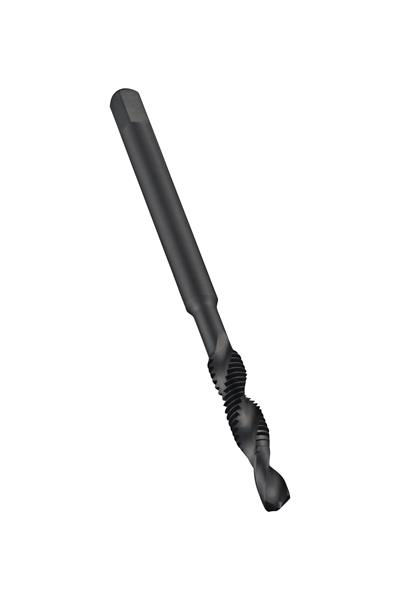

24 mm x 3.00 mm Coarse Cobalt (HSS-E) TiAIN Finish 4 Flute RH 6HX Full Bottoming Straight Flute Machine Tap
- Item Code: 7350273
- Brand: Dormer
- Unit Size: 1
Description
Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric thread M24 with 3.00 mm pitch and 6H class of fit with D8 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.7600" shank and 0.5670" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Tech Specs
Back To Top| Coating/Finish | TiAlN/Top |
|---|---|
| Number of Flutes | 4 |
| Overall Length Inches | 6.2992 |
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Overall Length Metric | 160 mm |
